A well-crafted diner floor plan is the invisible conductor orchestrating the symphony of your restaurant's daily operations. Considering 40% of consumers view dining out as a key part of their lifestyle, designing your diner’s floor plan intentionally is crucial. It guides the flow of customers and staff, enhances the dining experience, and can significantly impact your bottom line.

Whether you're launching a new diner or renovating an existing one, understanding the nuances of floor plan design is crucial for creating a space that's both functional and inviting.

In this comprehensive guide, we'll explore every aspect of diner floor plans, from the basic elements they should include to the software tools that can help bring your vision to life. Let’s get started.

Key Takeaways

- A well-designed diner floor plan is crucial for efficiency, customer satisfaction, and profitability.

- Essential elements include seating areas, kitchen layout, restrooms, and service stations.

- Accessibility considerations are vital for legal compliance and inclusivity.

- Creating a diner blueprint involves careful planning, measurement, and adherence to local regulations.

- Various software options are available to help design and visualize your diner floor plan.

- Best practices include optimizing traffic flow, balancing capacity with comfort, and creating a welcoming atmosphere.

- Choosing the right floor plan depends on your diner's concept, target audience, and available space.

What is a Diner Floor Plan?

When asked about the key to his success, owner of Miami’s Big Pink diner, Myles Chefetz, said, “... a combination of elements: the way food looks, the way it tastes, the variety of food, and the way a menu mixes together. The ambiance in the place should not be overwhelming, yet it makes you feel good. There are a lot of subliminal things that hit the senses.”

Image source

As a diner owner, paying attention to the details is crucial, starting with your floor plan. A diner floor plan is a comprehensive visual representation of your restaurant's layout, detailing the arrangement of various elements within the space. It serves as a blueprint for your diner's physical organization, guiding the placement of furniture, equipment, and functional areas. A well-crafted diner floor plan is essential for several reasons:

1. Efficiency: It optimizes the flow of staff and customers, reducing bottlenecks and improving service speed. Space planning is necessary!

2. Customer Experience: A thoughtful layout enhances dining comfort and overall atmosphere.

3. Safety: Proper planning ensures emergency exits are easily accessible and fire safety regulations are met.

4. Profitability: Strategic seating arrangements can maximize capacity without sacrificing comfort.

5. Compliance: A well-designed floor plan adheres to all local health and safety regulations.

Your diner floor plan is more than just a seating chart; it's a strategic tool that can significantly impact your restaurant's success.

icon RESOURCE

Restaurant Floor Plan Templates

Use these restaurant floor plan templates to get inspired as you map, or reimagine, the layout and space setup for your restaurant.

Toast

What the Floor Plan Layout Should Include

A comprehensive diner floor plan should encompass all the essential elements contributing to a smooth operation and positive customer experience. Here's a detailed list of what your floor plan should include:

Entrance and Waiting Area:

- Host station

- Waiting benches or chairs

- Menu display

Dining Areas:

- Tables and chairs (various sizes for different group sizes)

- Booths

- Counter seating with stools

- Private dining sections (if applicable)

Kitchen Area and Food Preparation:

- Kitchen design

- Cooking stations (grill, fryer, prep areas)

- Food storage areas

- Dishwashing station

- Pass-through window or pickup area

- Counter space

Bar Area (if applicable):

- Bar counter and stools

- Beverage preparation area

- Liquor and glass storage

Restrooms:

- Customer restrooms (including accessible facilities)

- Employee restrooms

Service Stations:

- Beverage dispensers

- Cutlery and napkin storage

- Point of Sale (POS) systems

Storage Areas:

- Dry goods storage

- Refrigerated storage

- Cleaning supplies storage

Employee Areas:

- Staff lockers or changing room

- Break room

Office Space:

- Manager's office

- Administrative area

Utility Areas:

- HVAC systems

- Electrical panels

- Water heaters

Outdoor Spaces (if applicable):

- Patio seating

- Parking areas

Safety Features:

- Fire extinguishers

- Emergency exits

- First aid stations

Accessibility Features:

- Wheelchair ramps

- Wide pathways

- Accessible seating options

By including these elements in your diner floor plan, you ensure that every aspect of your restaurant's operation is accounted for, leading to a more efficient and enjoyable dining experience for both customers and staff.

Accessibility in Diner Floor Plans

Accessibility is a crucial aspect of any diner floor plan, not only for legal compliance but also to create an inclusive environment that welcomes all customers. Here are key considerations for accessibility in your diner floor plan:

Entrance and Exit:

- Ensure doorways are a minimum of 32 inches wide to accommodate wheelchairs.

- Install ADA-compliant ramps with proper slope ratio (1:12 or less) where necessary.

- Use automatic doors or ensure manual doors require less than 5 pounds of force to open.

Pathways:

- Maintain clear pathways with a minimum of 36 inches wide throughout the diner.

- Avoid obstacles that could impede movement or pose tripping hazards.

Seating:

- Provide a variety of seating options, including tables accessible to wheelchair users.

- Ensure that at least 5% of seating (at least one table) is accessible, with a minimum clear floor space of 30 inches by 48 inches.

- Accessible tables should have a surface height minimum of 28 inches and a maximum of 34 inches with knee clearance of at least 27 inches high, 30 inches wide, and 19 inches deep.

Counter and Bar Areas:

- Include a portion of service counters (at least 36 inches long) at a maximum height of 36 inches.

- Provide accessible seating in bar areas.

Restrooms:

- Design at least one restroom to be fully accessible, with proper turning space and grab bars.

- Ensure doorways, sinks, and hand dryers are at appropriate heights and easily reachable.

Signage:

- Use high-contrast, large-print signage throughout the diner.

- Include braille on important signs for visually impaired customers.

Lighting:

- Provide adequate, glare-free lighting to assist those with visual impairments.

Acoustic Considerations:

- Implement sound-absorbing materials to reduce background noise, aiding those with hearing impairments.

Service Animals:

- Allocate space for service animals to rest near their owners without obstructing pathways.

Emergency Preparedness:

- Ensure emergency exits are marked clearly and accessible to all.

- Include visual alarms for those with hearing impairments.

By integrating these accessibility features into your diner floor plan, you create a space that is not only compliant with regulations like the Americans with Disabilities Act (ADA) but also welcoming to a diverse customer base. This inclusive approach can expand your potential market and enhance your diner's reputation for hospitality.

icon RESOURCE

Restaurant Health Inspection Checklist

This free checklist gives you all the tips and tricks you need to ace your next inspection.

Toast

Floor Plan Software Options

In the digital age, numerous software options are available to help you create professional and accurate diner floor plans. Here's an overview of some popular choices:

SmartDraw:

- User-friendly interface with drag-and-drop functionality

- Large library of restaurant-specific symbols and templates

- Available online or as a desktop application

AutoCAD:

- Professional-grade software used by architects and designers

- Highly precise and detailed 2D and 3D modeling capabilities

- Steep learning curve, but powerful for complex designs

SketchUp:

- 3D modeling software with a relatively easy learning curve

- Useful for creating virtual walk-throughs of your diner

- Free version available, with paid pro version for advanced features

RoomSketcher:

- User-friendly tool for creating 2D and 3D floor plans

- Includes a library of restaurant furniture and fixtures

- Offers a free version with paid upgrades for more features

CAD Pro:

- Specifically designed for architectural and engineering drawings

- Includes restaurant-specific templates and symbols

- More affordable than AutoCAD but still professional-grade

FloorPlanner:

- Web-based application with an intuitive interface

- Allows for quick creation of 2D and 3D plans

- Free version available with paid upgrades

ConceptDraw:

- Versatile diagramming software with specific tools for floor plans

- Includes a library of restaurant-specific elements

- Available for both Windows and Mac

Sweet Home 3D:

- Free, open-source software for 2D and 3D modeling

- User-friendly interface suitable for beginners

- Can import custom furniture models

Planner 5D:

- Web-based and mobile app for creating 2D and 3D floor plans

- Includes a catalog of furniture and decor items

- Offers AR and VR capabilities for an immersive design experience

EdrawMax:

- Versatile diagramming tool with floor plan capabilities

- Includes templates and symbols for restaurant design

- Available online and as a desktop application

When choosing floor plan software, consider factors such as:

- Ease of use

- Available features (2D vs. 3D, custom symbol libraries, etc.)

- Compatibility with your device and other software

- Cost (one-time purchase vs. subscription)

- Support and tutorials available

It's often beneficial to try out free versions or trials of different software options to find the one that best suits your needs and skill level. Remember, the goal is to create a clear, accurate representation of your diner layout, so choose a tool that helps you achieve this effectively.

Best Practices for Designing Your Restaurant Floor Plan

A number of factors create an enjoyable dining experience, and according to a survey by Statista, 52% of patrons enjoy eating at restaurants because it’s a time they can spend with family and friends. And designing an effective diner floor plan requires careful consideration of various factors. Here are some best practices to guide you in creating an optimal layout:

Prioritize Flow:

- Design clear pathways for customers and staff to move efficiently.

- Avoid creating bottlenecks, especially near the entrance, kitchen, and restrooms.

- Ensure smooth transitions between different areas of the diner.

Balance Capacity and Comfort:

- Resist the temptation to overcrowd your space with tables.

- Allow at least 18 inches between occupied chairs for comfortable movement.

- Consider the Americans with Disabilities Act (ADA) guidelines for table spacing.

Create a Welcoming Entrance:

- Design an inviting entrance area with clear signage.

- Include a waiting area if space allows.

- Position the host station for easy customer interaction and space management.

Optimize Table Mix:

- Offer a variety of seating options (tables, booths, counter seating) to accommodate different group sizes and preferences.

- Use a mix of fixed and movable seating for flexibility.

Maximize Window Usage:

- Position seating to take advantage of natural light and views.

- Consider privacy and glare when arranging tables near windows.

Plan for Technology:

- Include space for POS systems, charging stations, and Wi-Fi routers.

- Consider future tech needs in your design.

By following these best practices, you can create a diner floor plan that not only looks great but also functions efficiently, enhancing both customer experience and operational effectiveness. Remember, the key is to balance aesthetics with practicality, creating a space that's inviting, comfortable, and operationally sound.

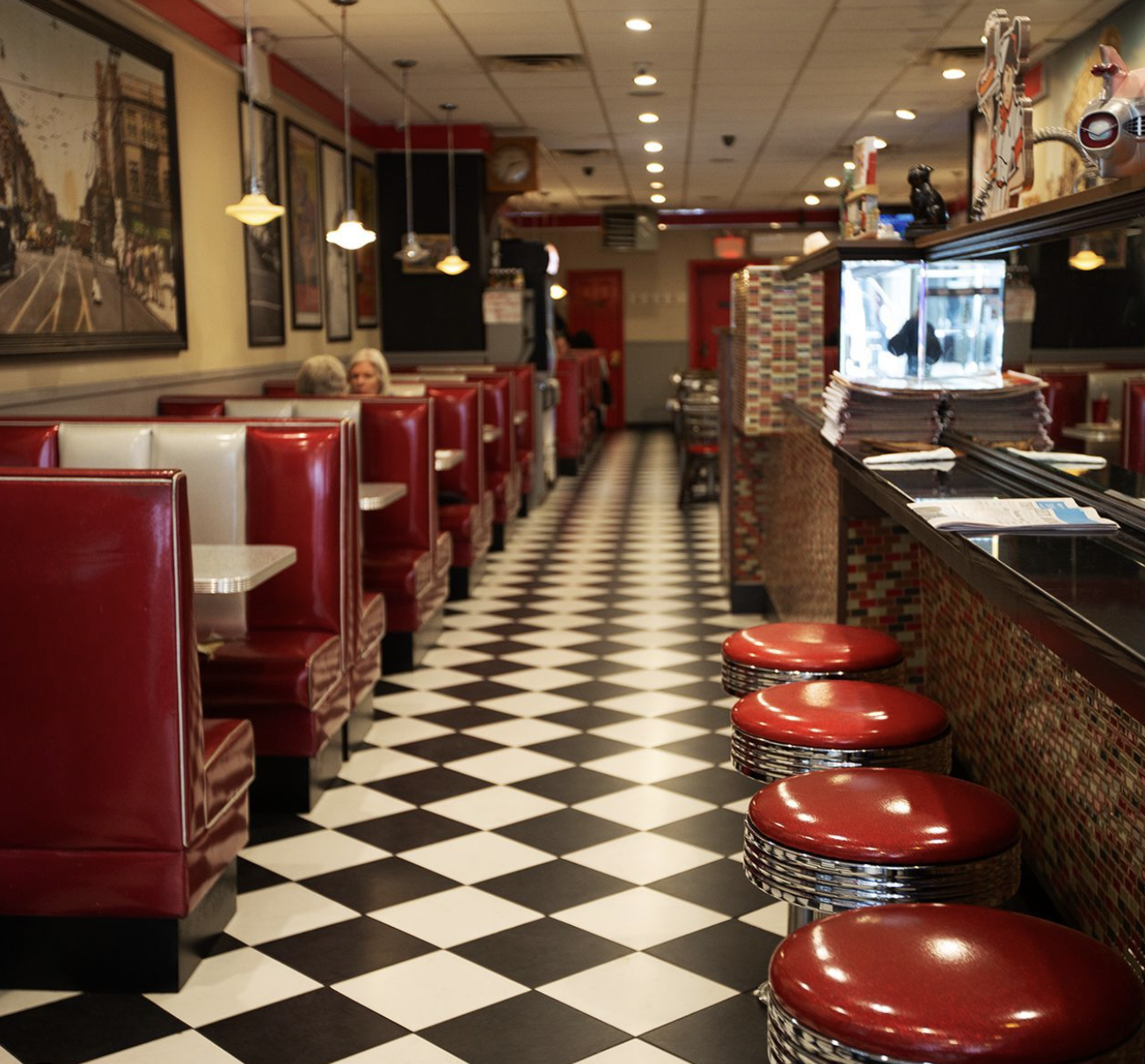

Image source

How to Choose a Restaurant Floor Plan

Selecting the right floor plan for your diner is a crucial decision that will impact your restaurant's efficiency, atmosphere, and overall success. Here's a guide to help you choose the most suitable floor plan:

Consider Your Concept:

- Align your floor plan with your diner's theme and style.

- For a traditional American diner, consider a layout with prominent counter seating and booth options.

- For a more upscale diner concept, you might prioritize table seating and intimate booth areas.

Analyze Your Target Audience:

- Consider the demographics and preferences of your target customers.

- If you're targeting families, ensure ample space for larger tables and high chairs.

- For a younger crowd, you might include more flexible seating arrangements and communal tables.

Evaluate Your Space:

- Assess the shape and size of your available space.

- Consider structural elements like columns, windows, and doors that might impact the layout.

- Determine if your space is better suited for an open plan or compartmentalized layout.

Determine Your Service Style:

- For counter service, prioritize a large, accessible counter area with clear paths to and from it.

- For table service, focus on efficient pathways for servers between tables and service stations.

- If offering both, create a clear delineation.

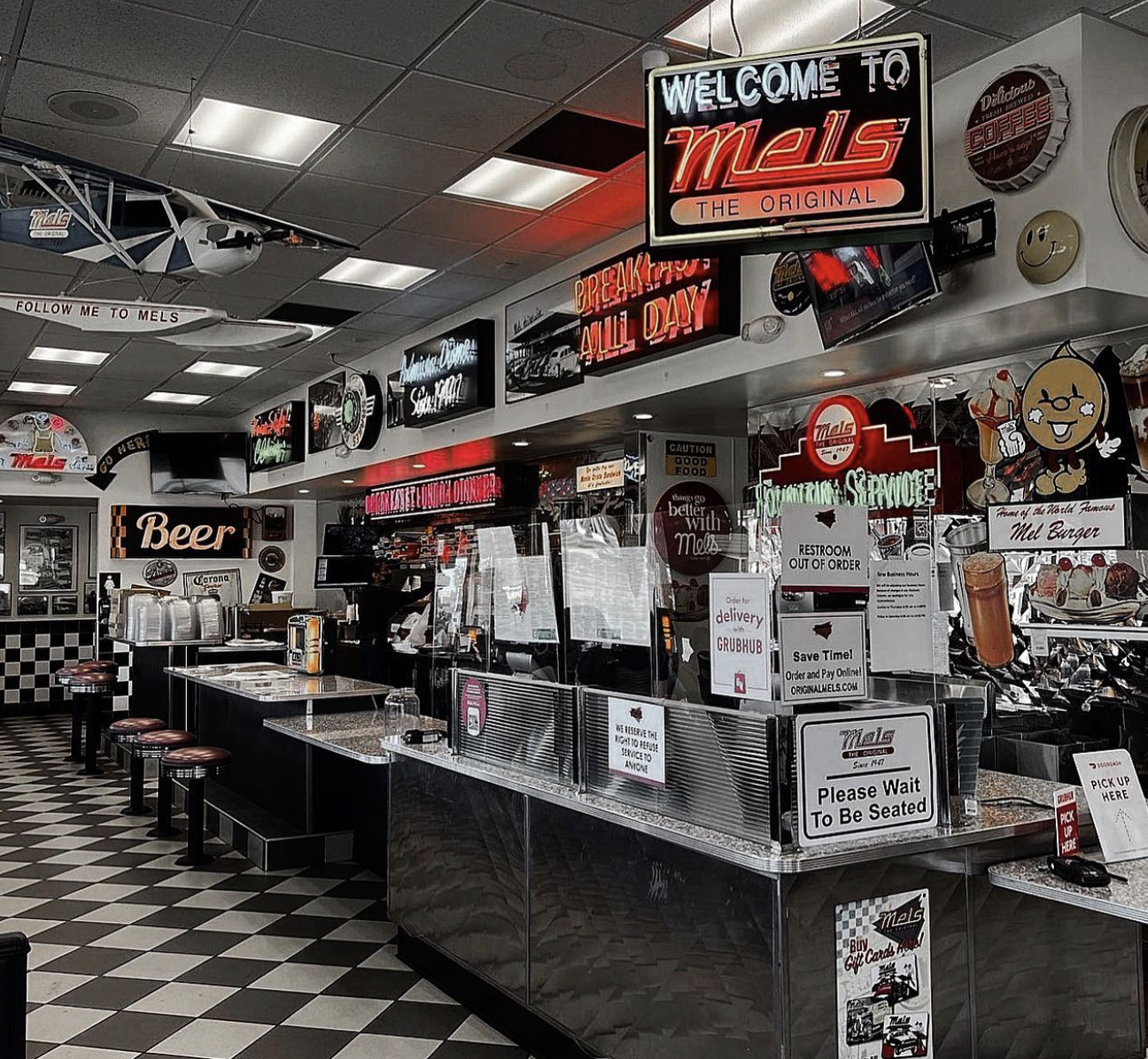

Image source

Set Your Dining Room Floor Up for Success

Crafting the ideal diner floor plan is an art that balances functionality, aesthetics, and regulatory compliance. It's a crucial step in bringing your culinary vision to life and creating a space where memories are made over delicious meals.

Ultimately, the perfect diner floor plan is one that not only looks good on paper but functions seamlessly in reality. It should create an environment where your staff can work efficiently, and your customers feel comfortable and welcome. As you implement your design, be open to feedback and willing to make adjustments. A great floor plan evolves with your business, adapting to meet new challenges and opportunities.

Next up: check out restaurant floor plan examples here.
